| Encoder model： | EC28 series | |
| Name： |

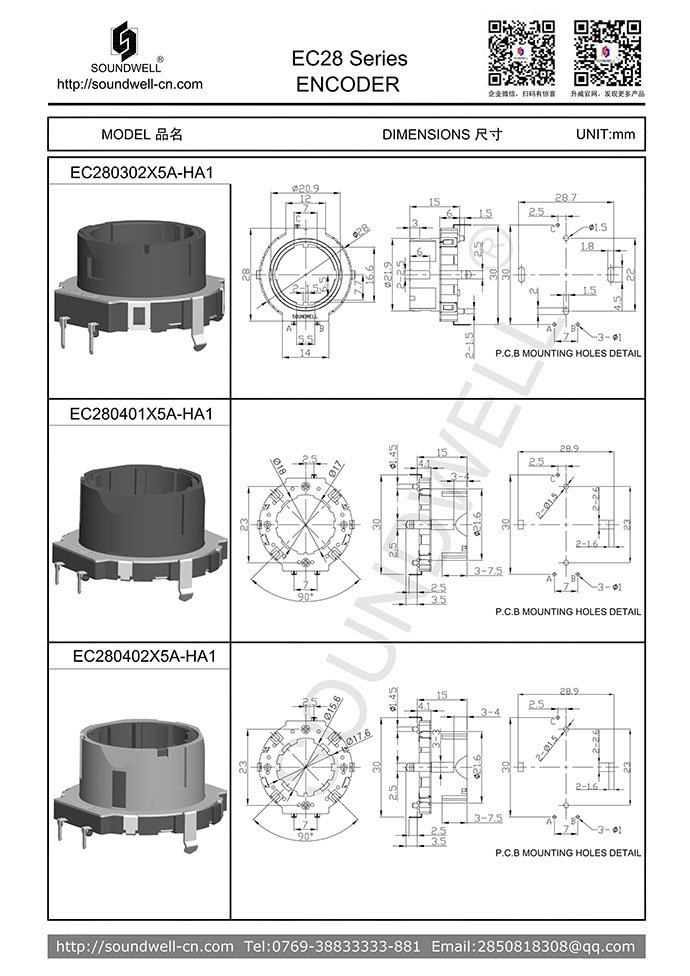

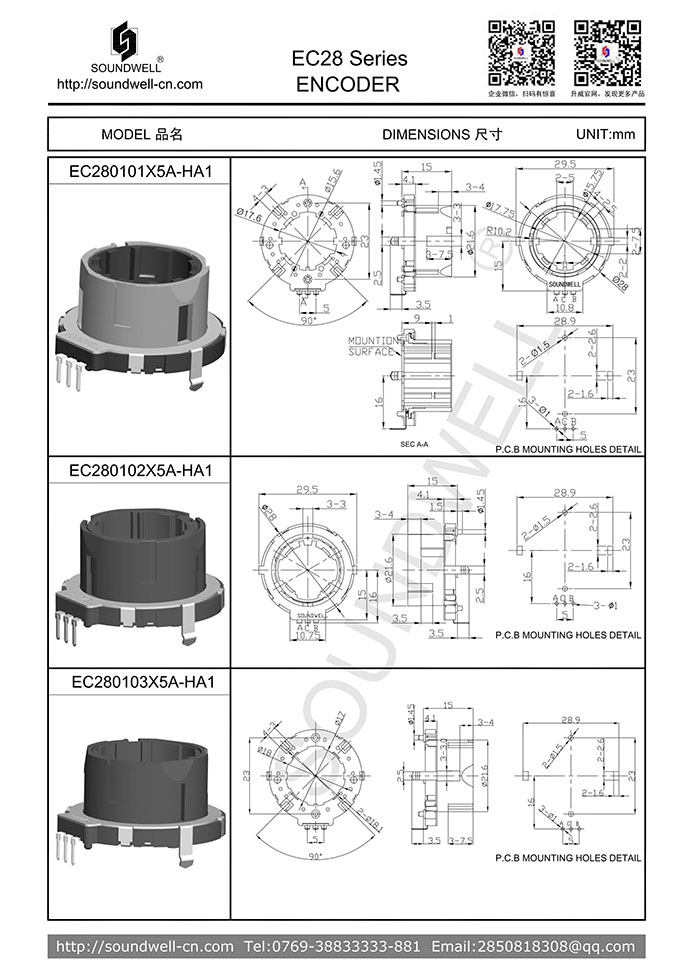

EC28 Hollow Shaft Incremental Encoder |
|
| Main Specifications: | Dimensions: ∮28mm Rated voltage: DC 10V； Number of detent: 18/30； pulses: 15/18； Working temperature: -40°C~85°C； Rotational life: 50,000 cycles Min |
|
| Product Features： |
|
|
| Applications： |
|
ONE、MECHANICAL CHARACTERISTIC
1. Detent Torque: 120±50gf.cm/180±70gf.cm
2. Number of detent: 18 (Step angle: 20±3°); 30 (Step angle: 12±3°)
3. Shaft wobble: 0.2 mm Max
4. Shaft play: 2° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 18/15 pulses/360°
2. Phase difference: ≥5 ms
3. Rated voltage: DC 10V
4. Insulation Resistance: 100M? 1 Minute at DC 250V
5. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
