Module model： |
MD46 series |
|
| Applications： |
Home appliances, audio devices or other electronic products; |
|
| Product Features: |
Encoder module with press switch, touch screen as well as ambient light integrated. The screen can be customized (OLED, TFT, LCD etc). |
|
| Main Specifications: |
Dimensions: 46mm; Number of detent: 30; Pulses: 15 Working temperature: -20℃~70℃; Rotational life: 30,000 cycles Min; Push-on switch life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 11±4mN.m
2. Total rotational angle: 360°
3. Number of detent: 30
4. Press switch travel: 1.3±0.2mm
5. Switch operating force: 250±80gf
TWO、ELECTRICAL CHARACTERISTIC
1. Insulation resistance: 100M?
2. Dielectric voltage: 1 Minute at AC 300V
3. Pulses: 15
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Press switch life: 30,000 cycles Min

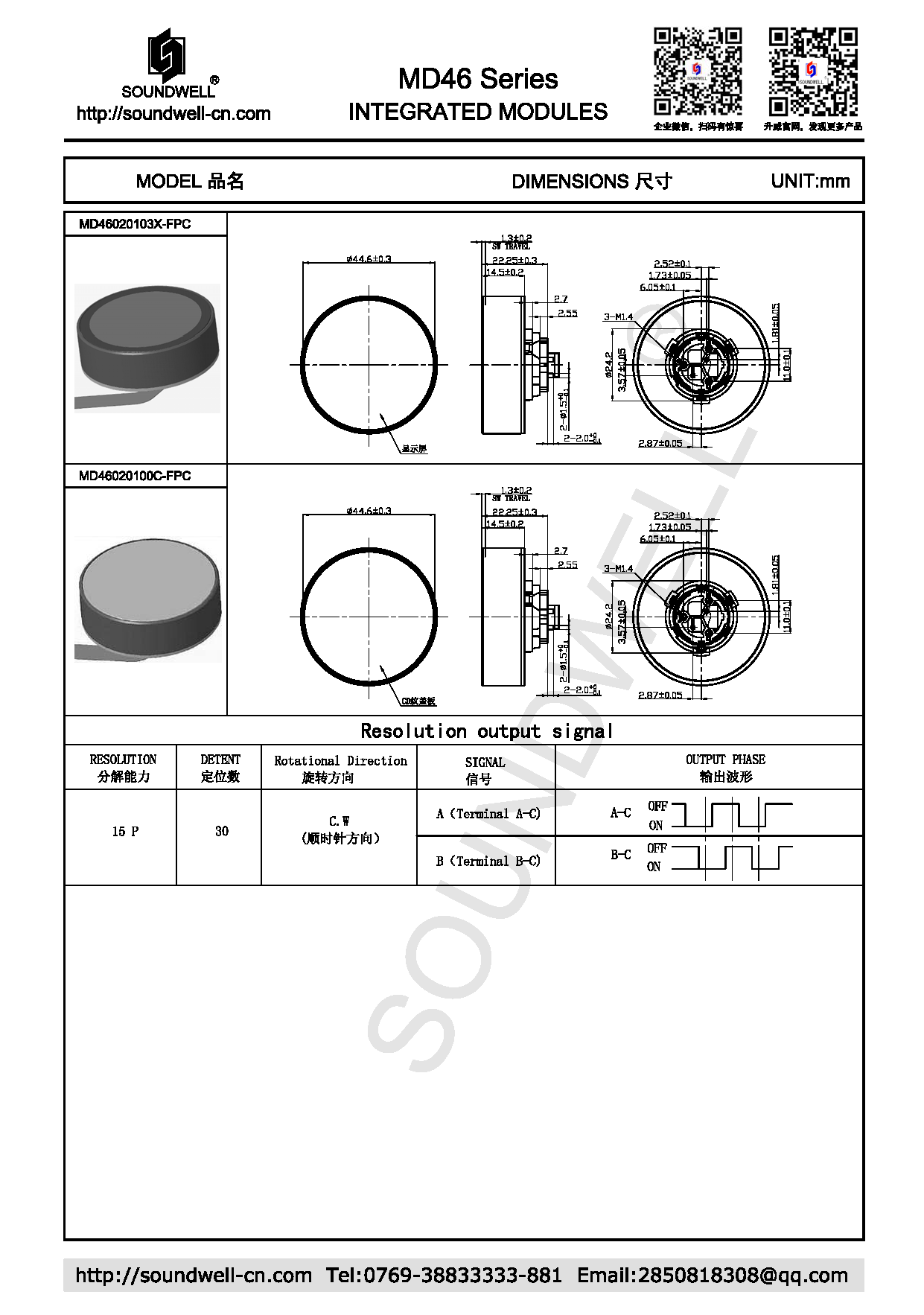

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
