| Encoder model： | EC04 series |
| Name： |
EC04 Through Shaft Rotary Incremental Encoder |
| Main Specifications: |
Rated power: DC 5V; |
| Product Features： |
Small size with long life and stable performance; |
| Applications： |
Smart watches, headphones and other household appliances, related electronic equipment. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100gf.cm Max
2. Number of detent: 12 (Step angle: 30±3°)
3. Shaft play: 3° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Power rating: DC 5V
2. Insulation resistance: 10M? 60s±5s at DC 50V
3. Dielectric voltage: AC 50V 60s±5s.
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 100,000 cycles Min

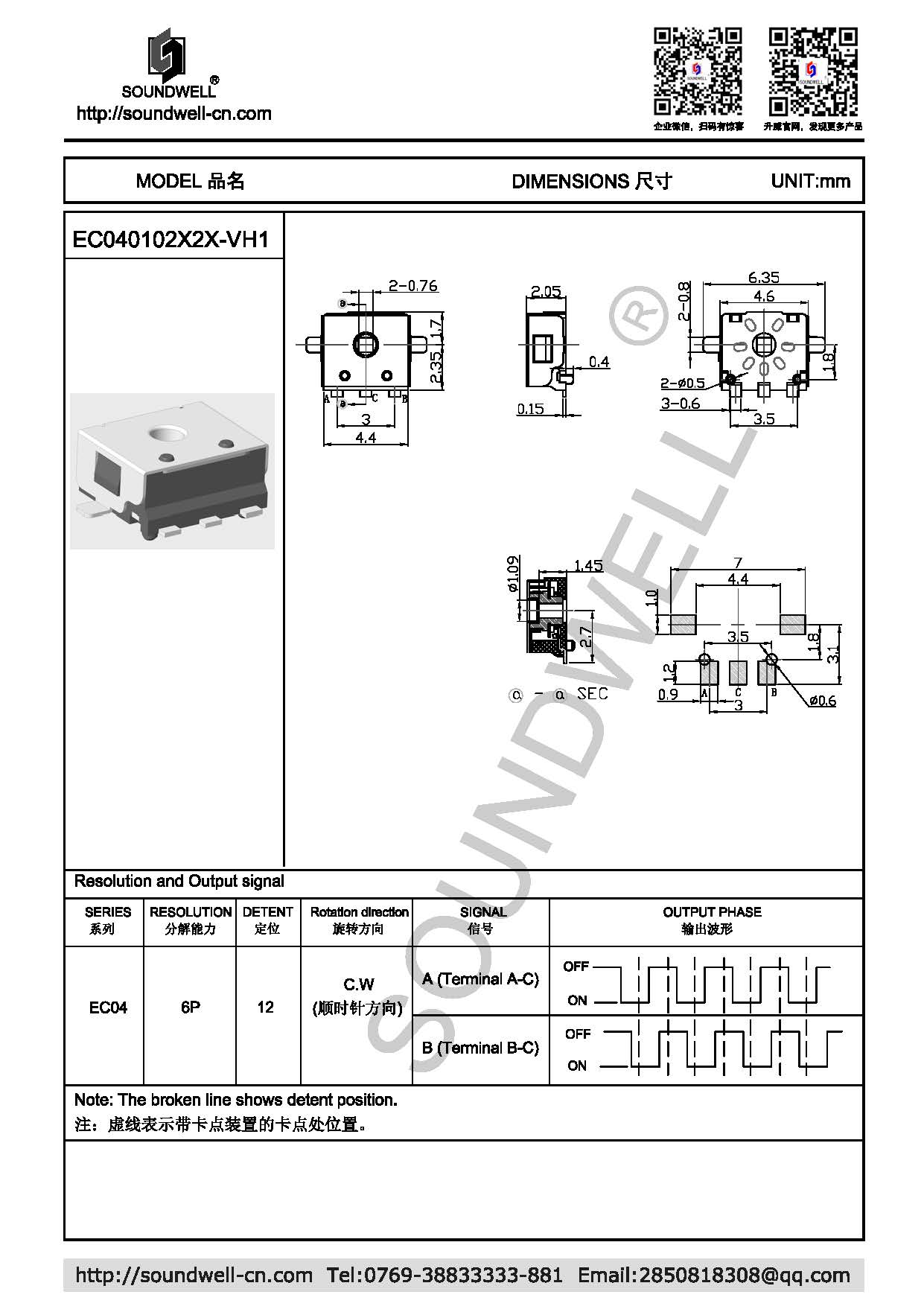

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
