| multi-way switch model： | RS1701 series |
| Name： |
RS1701 Metal Shaft Rotary Route Switch |
| Main Specifications: | Dimensions: 17mm Number of positions: 2~9 Step angle: 30°±3° Rated power: DC16V 0.3A Contact resistance: 100mΩ Max Rotational torque: 100~600gf.cm Switch operating force: 250~650gf Operating temperature: -10℃ ～70℃ Operating life: 10,000 cycles Min |
| Product Features： |
2~9 positions available with clear sense of clicks; |
| Applications： |
Microwave oven, washing machine and other white household appliances, can also be used in multimedia audio/power amplifier, medical equipment. The main functions are function switching, speed control, temperature adjustment and so on. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~600gf.cm
2. Switch operating force: 250~650gf
3. Number of positions: 2~9
4. Step angle: 30°±3°
TWO、ELECTRICAL CHARACTERISTIC
1. Contact resistance: 100mΩ Max
2. Power rating: DC16V 0.3A
3. Insulation resistance: 100M? 1 Minute at DC 250V
4. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 10,000 cycles Min
2. Push operating life: 20,000 cycles Min

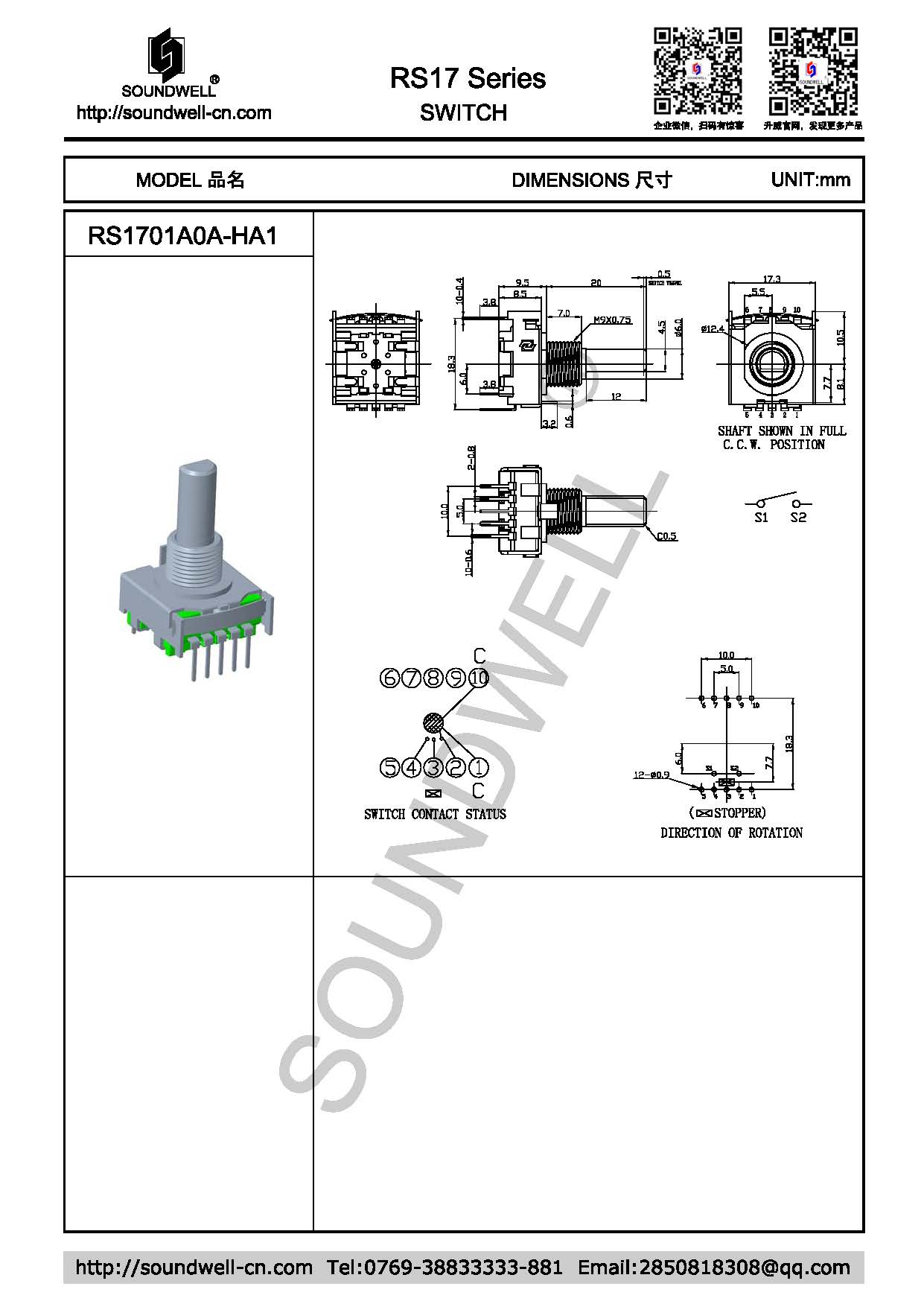

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
