| Encoder model: | MD60 series |
| name: |
MD60 Encoder Module with VA Break Screen |
| Main specifications: |
Dimensions: 60mm; |
| Features: |
Multi-function knob module that integrates VA code screen display and rotation; |
| Application areas: |
Outdoor air conditioners, household appliances and other electronic products; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 40±20mN.m
2. Total rotational angle: 360°
3. Number of detent: 30
TWO、ELECTRICAL CHARACTERISTIC
1. Insulation resistance: 100M?
2. Dielectric voltage: 1 Minute at AC 300V
3. Pulses: 15
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

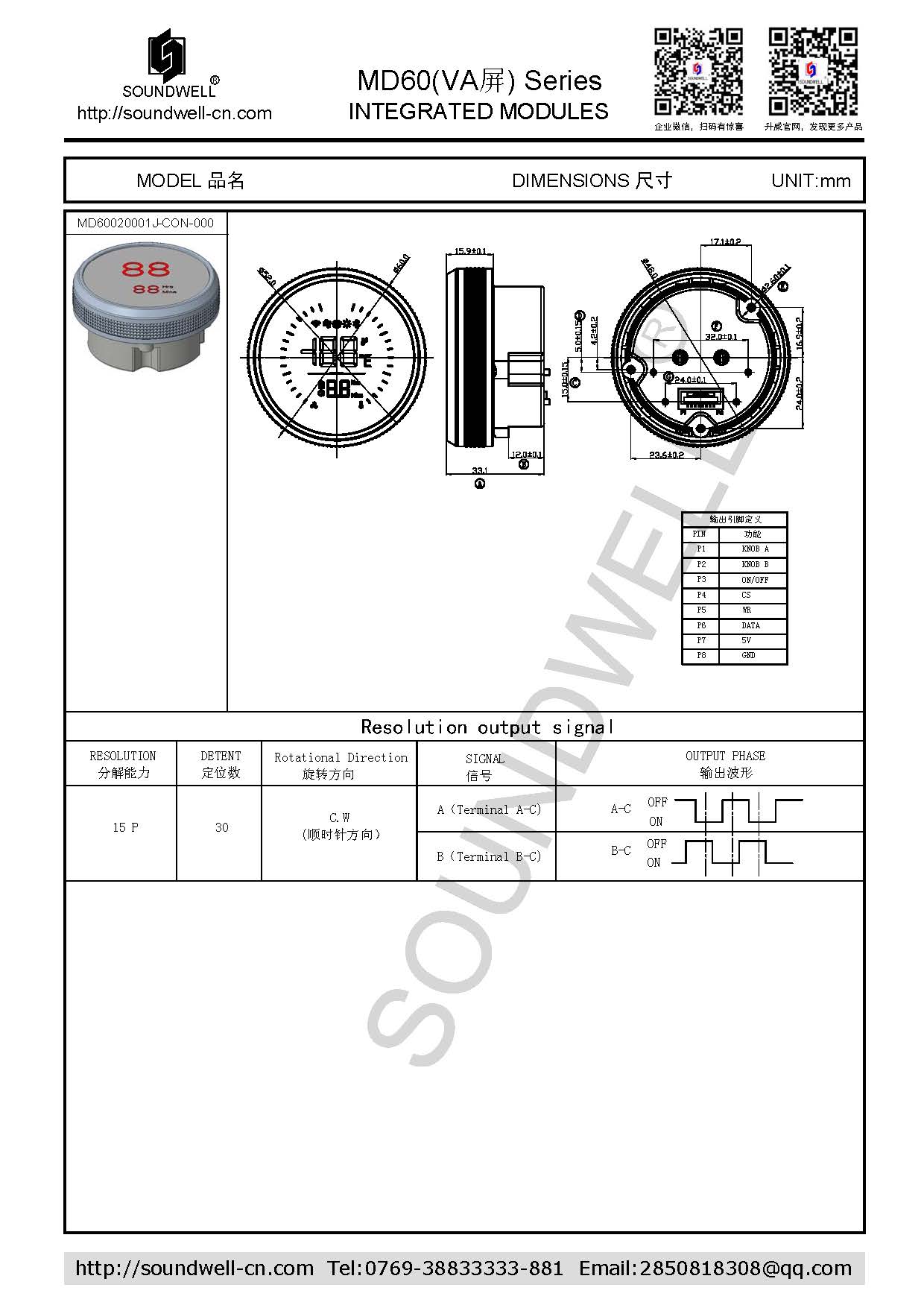

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
