| Encoder model: | RS19 series |
| name: |
RS19 Thin valve knob |
| Main specifications: |
Working temperature: -40℃~85℃； |
| Features: |
With the customer's valve body structure to achieve positioning feel, no signal output function; |
| Application areas: |
Applied to all kinds of valve body structure or need to locate the feel of home appliances; |
ONE、MECHANICAL CHARACTERISTIC
1. Detent torque: 300±100gf.cm
2. Number of positions: 8
3. Positioning angle: 0°, 90°, 120°, 150°, 180°, 210°, 240°, 270°
4. Stop strength: ≥ 3Kgf.cm
TWO、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

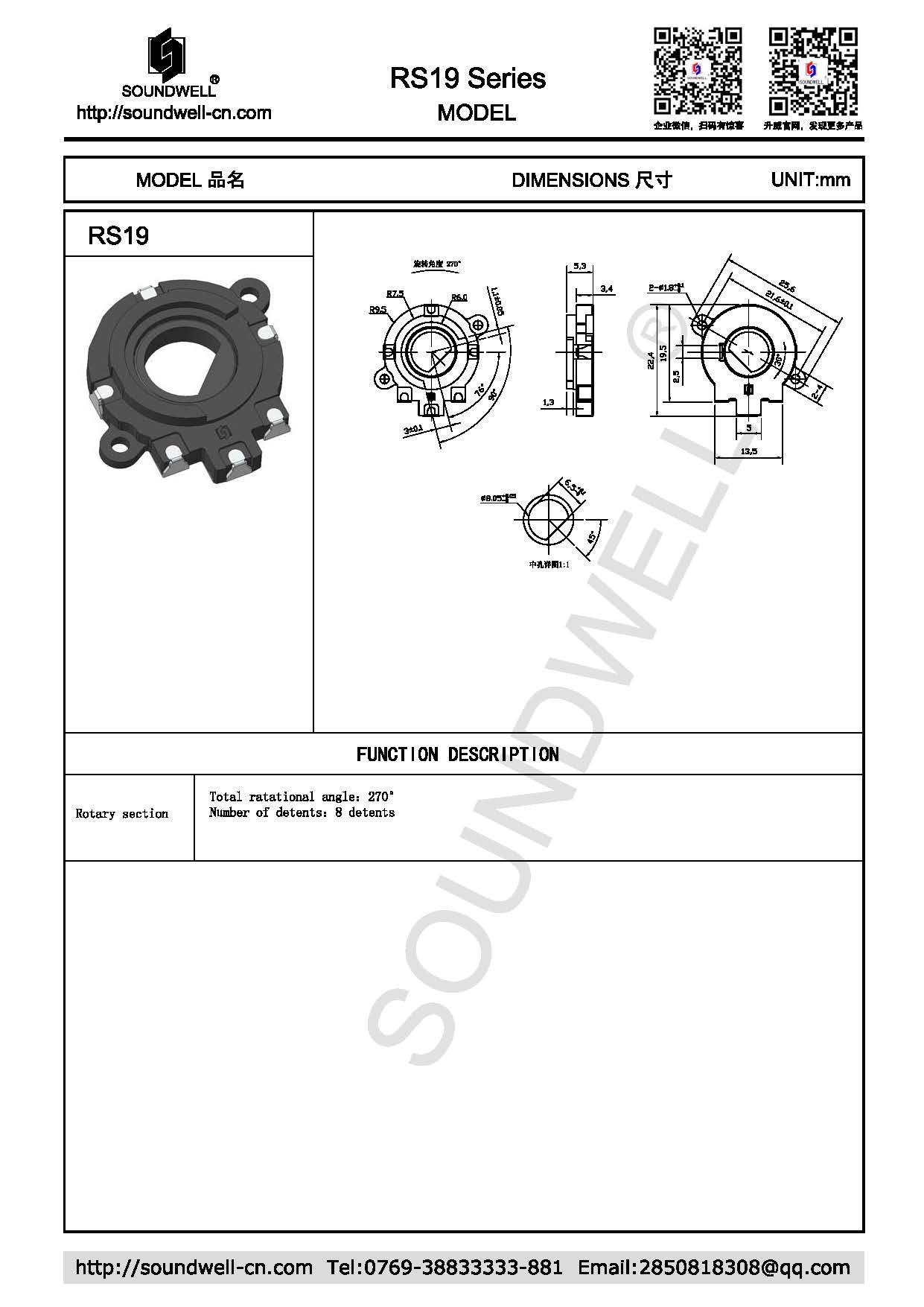

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
