PT16 Rotary Trimmer Potentiometer

2023-11-15


PT16 Rotary Trimmer Potentiometer

Potentiometer model: PT16 series
Name:

PT16 Rotary Trimmer Potentiometer

Main Specifications: Dimensions: 16mm;
Number of detent: 16;
Total resistance: 10KΩ;
Residual resistance: R1,2: ≤ 10 Ω;R2,3: ≤ 20 Ω;
Resistance Taper: B;
Operating temperature: -25℃ ~70℃;
Rotational life: 10,000 cycles Min;
Product Features:

The resistance value can be adjusted by rotation to adjust the input voltage or current.

Applications:

Household appliances such as clothes dryers and other related electronic devices.

PT16 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotational Torque:5±1mN.m
2. Total Rotational Angle: 360°
3. Number of detent: 16

TWO、ELECTRICAL CHARACTERISTIC

1. Total resistance: 10KΩ
2. Dielectric Voltage: 1 Minute at AC 250V
3. Residual resistance: R1,2: ≤ 10 Ω;R2,3: ≤ 20 Ω



THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 10,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

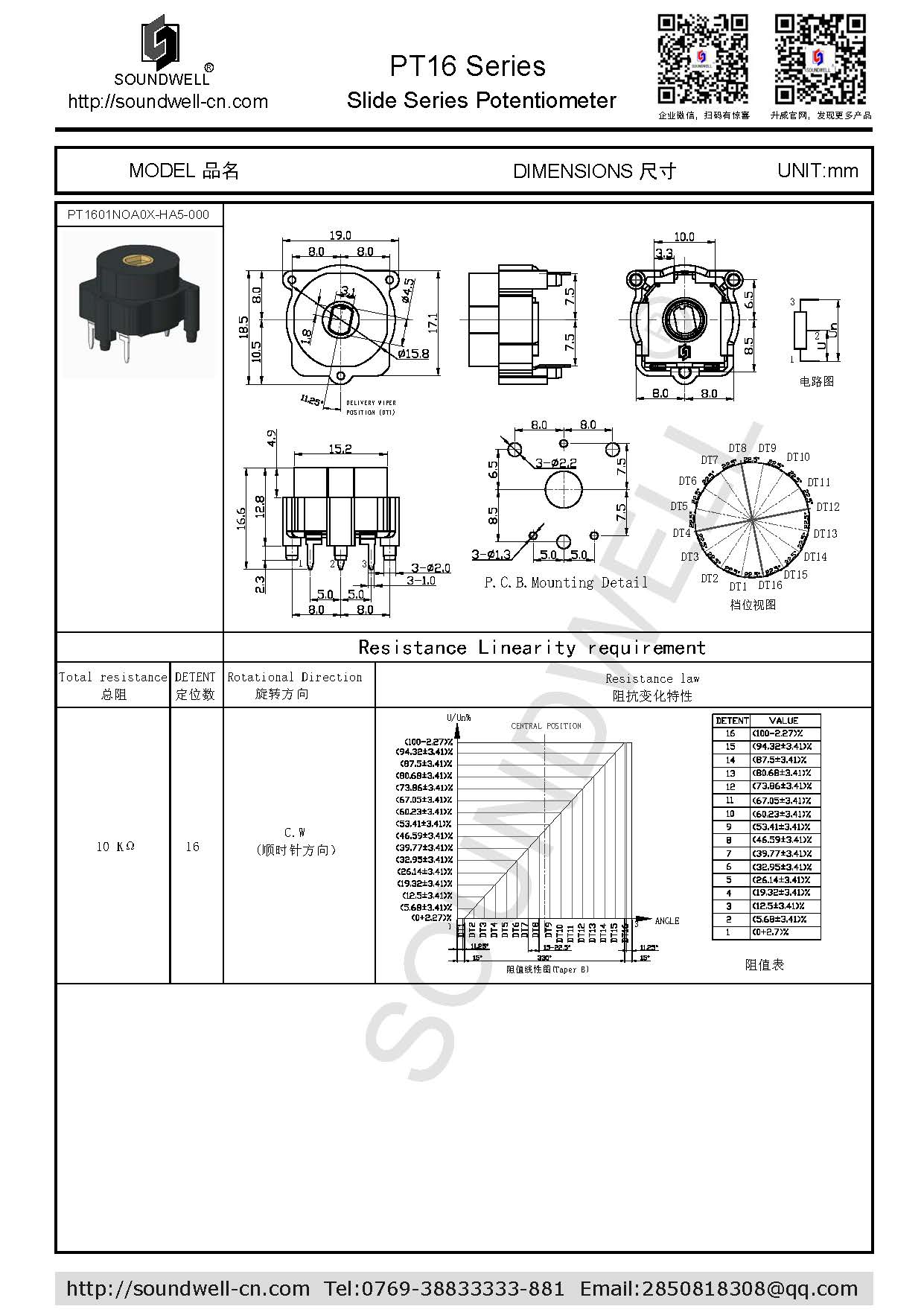

/uploads/images/PT16.jpg
