| Potentiometer model： | MR11 series |
| Name： |
MR11 Magnetic Rotary Potentiometer |
| Main Specifications: |
Rotation angle: 0~360°; |
| Product Features： |
Long life; |
| Applications： |
Traditional potentiometer application field can be. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotation torque: 10~150gf Max
2. Rotation angle: 0~360°
TWO、ELECTRICAL CHARACTERISTIC
1. Output voltage: DC 0~5V;
2. Output current: 15mA max
3. Rated voltage: DC 5V
4. Linear error: 1.5%
THREE、ENDURANCE CHARACTERISTIC
1. Operating life: 1,000,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".
/uploads/images/MR1101GO%20data.jpg

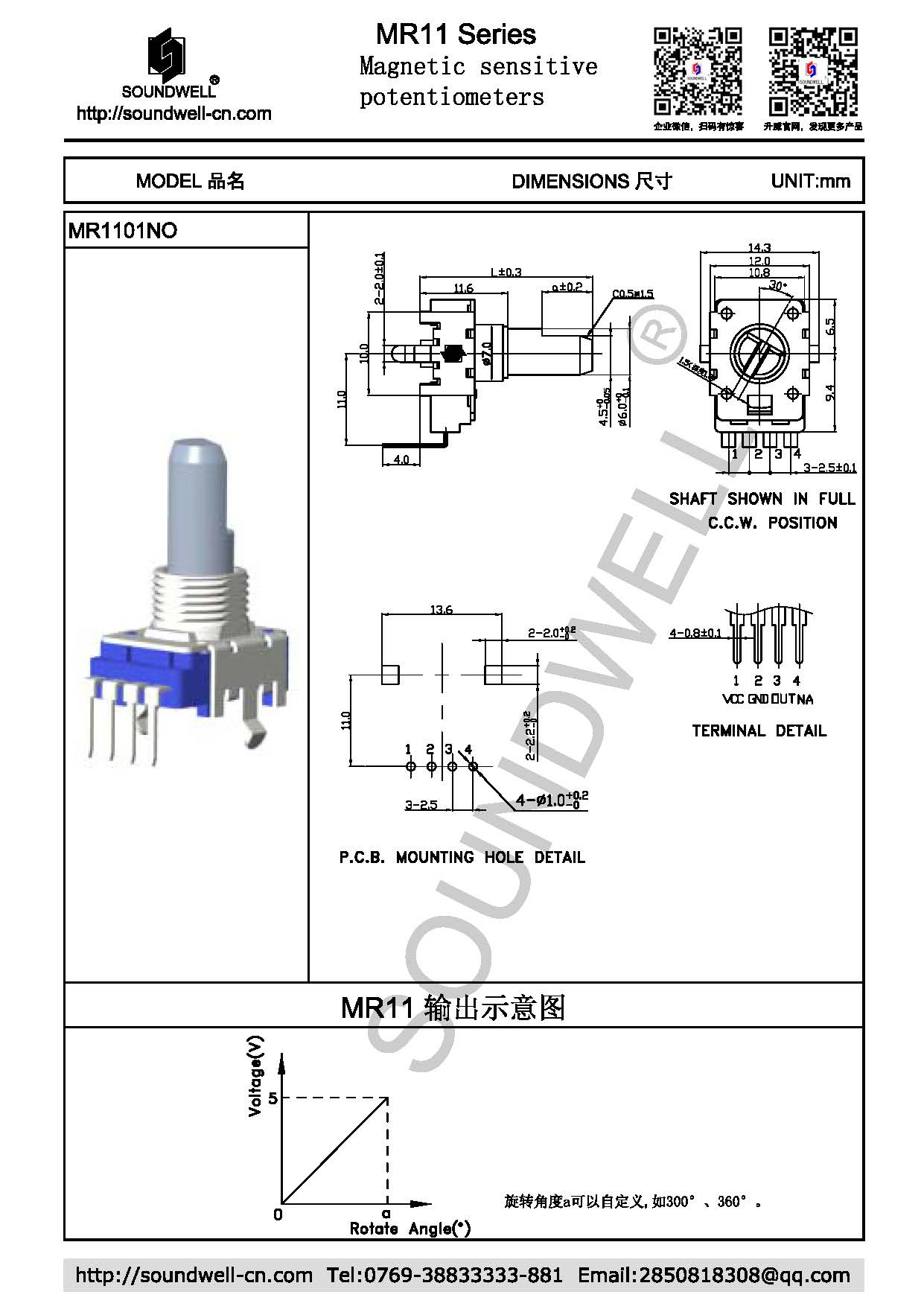

/uploads/images/MR1101NO%20data.jpg
