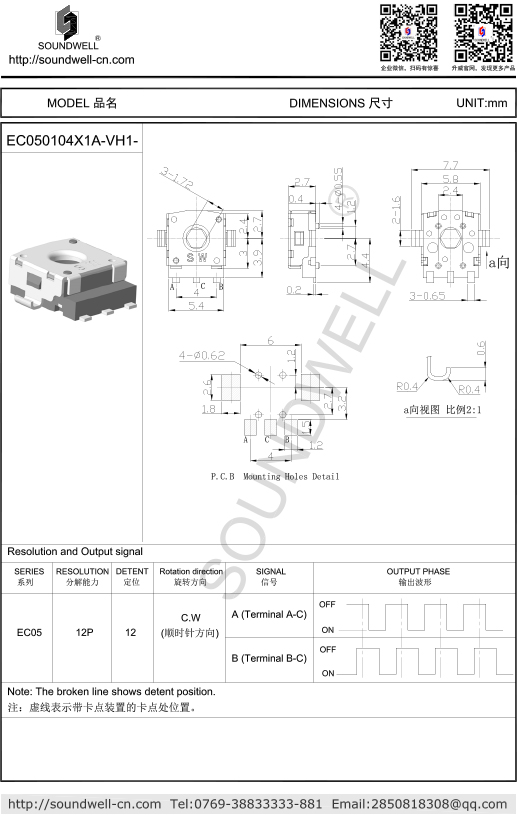

Encoder model： |
EC050104 series |
|
| Main Specifications:： |
Smart watches, earphone and other small electronic products. |
|
| Product Features: |
Small size with through shaft; Available for SMT reflow soldering; Gentle hand feel and clear positioning. |
|
| Functions： |
Mainly used to control volume and function switching. |
|
| Main Specifications: |
Rated voltage: DC 5V Number of detent: 12 Pulses: 12 Rotational torque: 30gf.cm Max Working temperature: -40℃~85℃ Rotational life: 100,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30 gf.cm Max
2. Number of detent: 12 (Step angle: 30±3°)
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12 pulses/360°
2. Phase difference: ≥3ms
3. Rated voltage: DC 5V
4. Insulation resistance: 50M? 60s±5s at DC 50V
5. Dielectric voltage: AC 50 V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1、Rotational life: 10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
