Encoder model： |
EC400201 series |
|
| Applications： |
Automotive electronics, audio products, household appliances and other related electronic devices; |
|
| Product Features: |
Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring. |
|
| Functions： |
It mainly plays the role of adjusting volume, adjusting temperature, frequency modulation, function switching, etc. |
|
| Main Specifications: |
Dimensions: φ40mm Rated voltage: DC 5V Number of detent: 14 Pulses: 14 Rotational torque: 450±150gf.cm Rotational angle: 360° Working temperature: -40℃~85℃ Rotational life: 30,000 cycles Min |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 450±150gf.cm
2. Number of detent: 14 (Step angle: 25.71°±3°)
3. Shaft Wobble: 0.2 mm Max
4. Shaft play : 2° MAX
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 14 pulses/360°
2. Phase difference: ≥5 ms
3. Rated voltage: DC 5V
4. Insulation resistance: 100M? 1 Minute at DC 250V
5. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life : 30,000 cycles Min

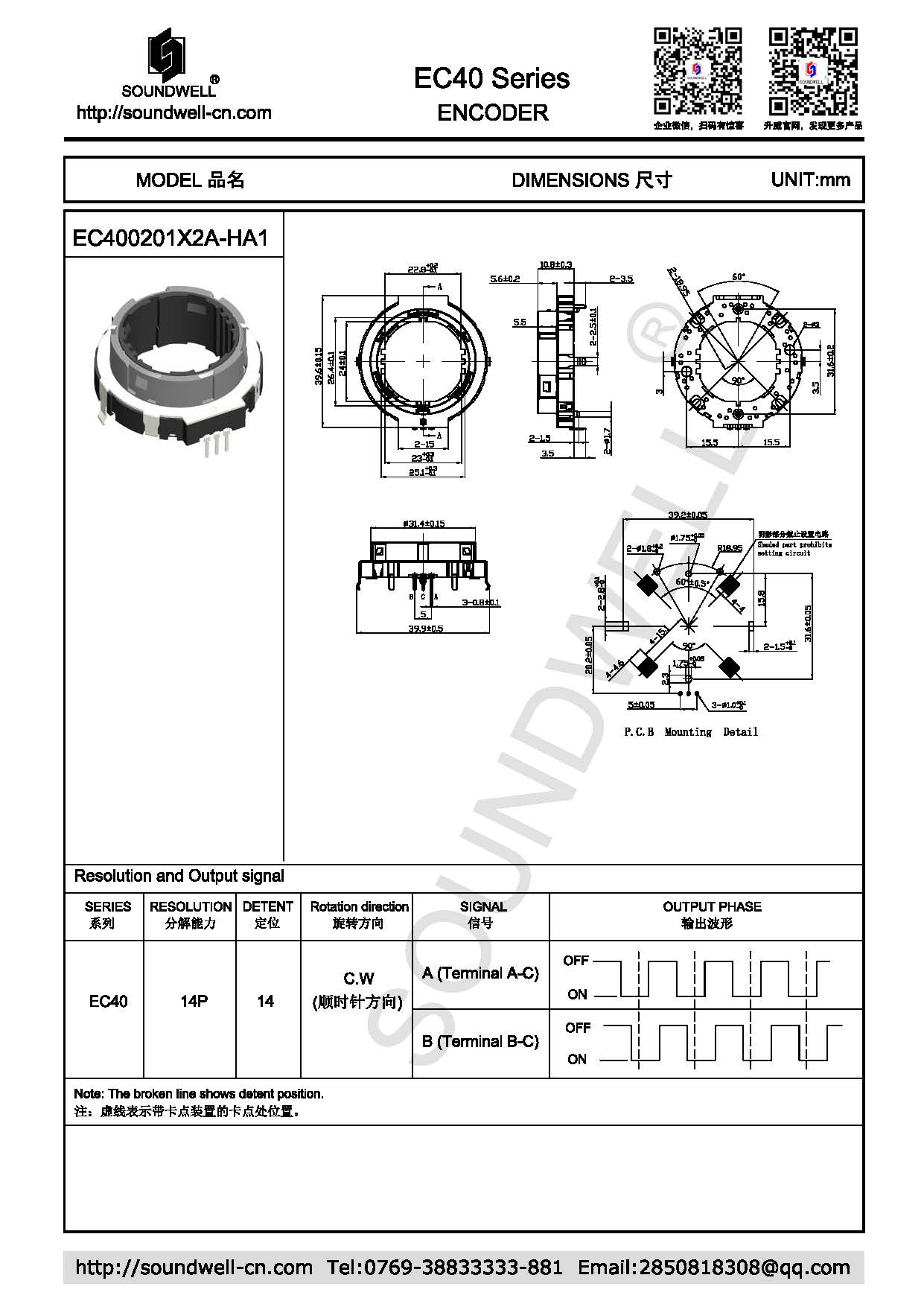

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
