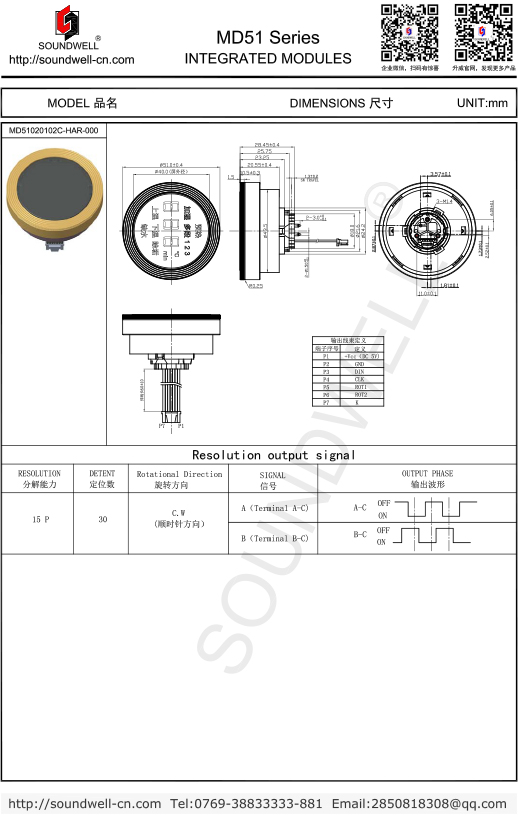

Module model： |
MD51 series |
|
| Applications： |
Household appliances and other electronic products. |
|
| Product Features: |
Available a press switch and digital tube on the basis of the existing hollow encoder; Different contents could be displayed on the digital tube according to customer's needs; |
|
| Main Specifications: |
Dimensions: 51mm; Number of detent: 30; Pulses:15; Working temperature: -25℃～75℃; Rotational life: 30,000 cycles Min; Push operating life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 15±7mN.m
2. Total rotational angle: 360°
3. Number of detent: 30
4. Switch travel: 1.3±0.2 mm
5. Switch operating force: 250±80gf
TWO、ELECTRICAL CHARACTERISTIC
1. Insulation Resistance: 100?
2. Dielectric Voltage: 1 Minute at AC 300V
3. Pulses: 15
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Push operating life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
