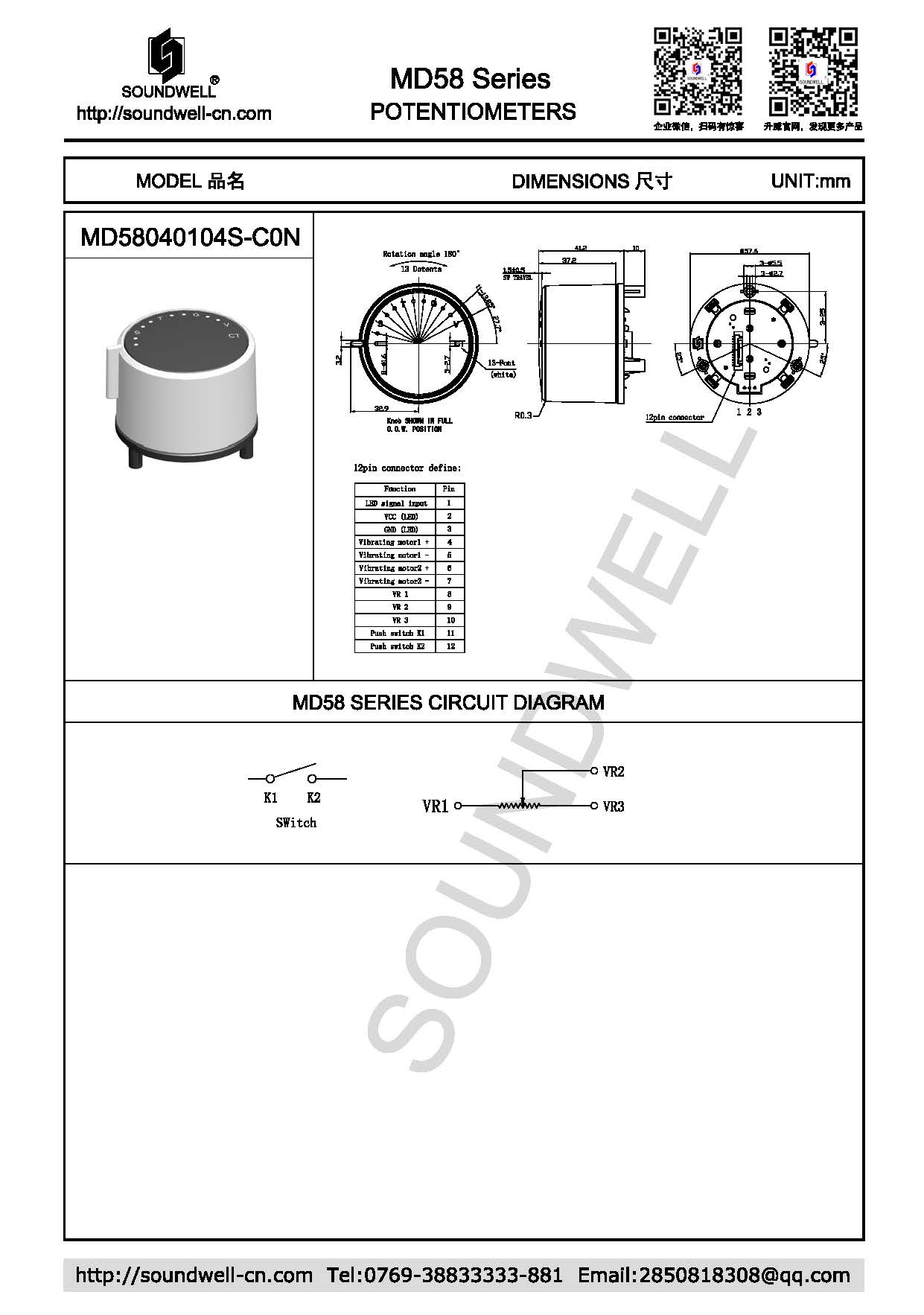

Module model： |
MD58 series |
|
| Applications： |
Coffee machines, household appliances and other electronic products; |
|
| Product Features: |
It integrates LED display, vibration, rotation and compression. |
|
| Functions： |
Function selection and confirmation; |
|
| Main Specifications: |
Rated power: 0.125W; Maximum operating voltage: DC 10V; Working temperature: -20℃~60℃; Mechanical rotation angle: 180°; Number of detent: 13 Rotational torque: 1500±300gf.cm; Switch operating force: 600±150gf gf; Press switch travel: 1.5 ±0.5 mm Rotational life: 30,000 cycles Min; Push-on switch life: 30,000 cycles Min; LED color: Red/ Blue/ Green Rated voltage: DC 3-5V |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 1500±300 gf.cm
2. Number of detent: 13
3. Shaft Stop Strength: ≥5 Kgf.cm
4. Shaft Wobble (mm p-p): 0.3mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: B10K±20%
2. Resistance Taper: B
3. Rated Power: 0.125W
4. Maximum Operating Voltage: DC 10V
5. Linearity Error Each Stop: ±3.5%
6. Insulation Resistance: 50M? 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
