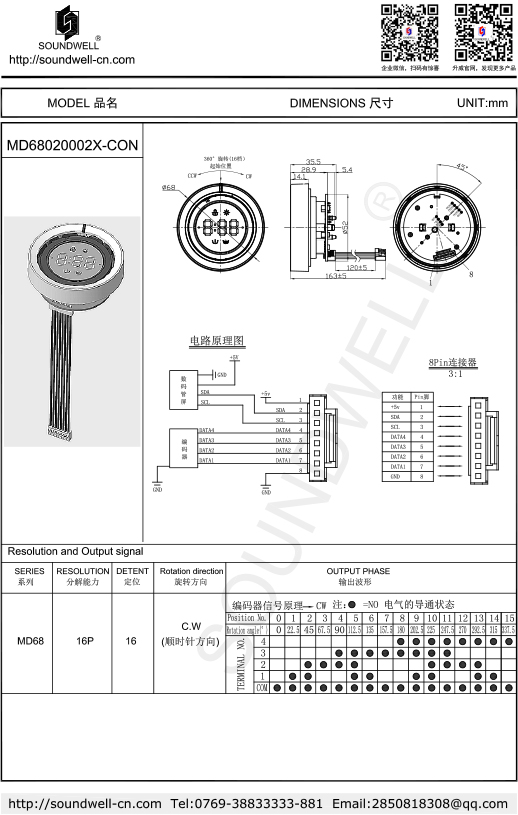

Module model： |
MD68 series |
|
| Applications： |
Washing machines and other household appliances; |
|
| Product Features: |
Available in anti-interference and memory preservation with unique signal output; A multi-functional module with seven-segment code digital tube display |
|
| Functions： |
Function selection and confirmation; |
|
| Main Specifications: |
Rated voltage: DC 5V; Maximum operating current: 100mA; Working temperature: -20℃~60℃; Mechanical rotation angle: 360°; Number of detent: 16; Rotational torque: 450±250gf.cm; Rotational life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 450±250gf.cm
2. Number of detent: 16
3. Shaft Wobble (mm p-p): 0.3mm Max
TWO、ELECTRICAL CHARACTERISTIC
1.Resolution: 16 pulses
2. Contact Resistance: ＜10Ω
3. Rated Power: DC5V 100mA
4. Insulation Resistance: 200M? 1 Minute at DC 500V
5. Dielectric Voltage: 1 Minute at AC 500V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
