Module model： |
MD83 series |
|
| Applications： |
Household appliances, audio and other related electronic equipment; |
|
| Product Features: |
Touch screen with good operation feel; Available in round screen and square screen according to customer’s needs; |
|
| Main Specifications: |
Rated voltage: DC 5V; Maximum operating current: 150mA; Working temperature: -20℃~70℃; Mechanical rotation angle: 360°; Number of detent:18 Pulses: 9 Rotational torque: 400±140gf.cm; Switch operating force: 400±80gf; Rotational life: 30,000 cycles Min; Press switch life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 400±140gf.cm
2. Number of detent: 18
3. Switch operating force: 400±80gf
TWO、ELECTRICAL CHARACTERISTIC
1.Resolution: 9 pulses
2. Rated Power: DC 5V 150mA
3. Insulation Resistance: 100M? 1 Minute at DC 250V
4. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Switch operating life: 30,000 cycles Min

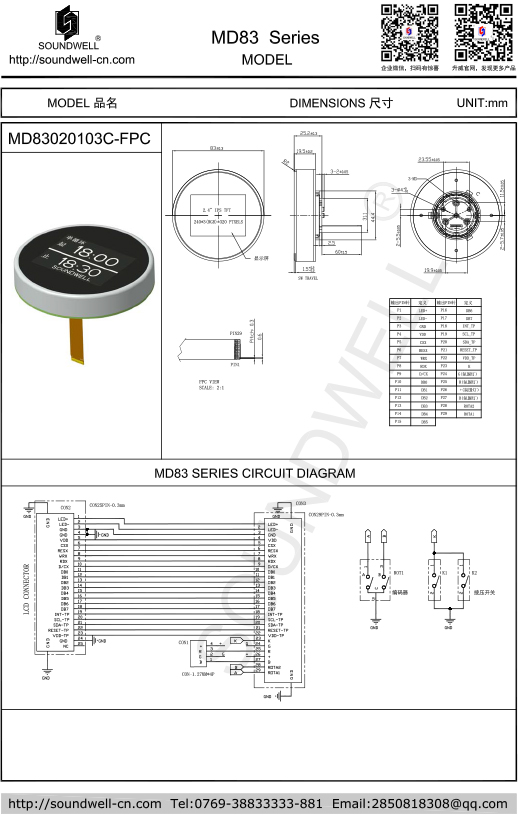

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
