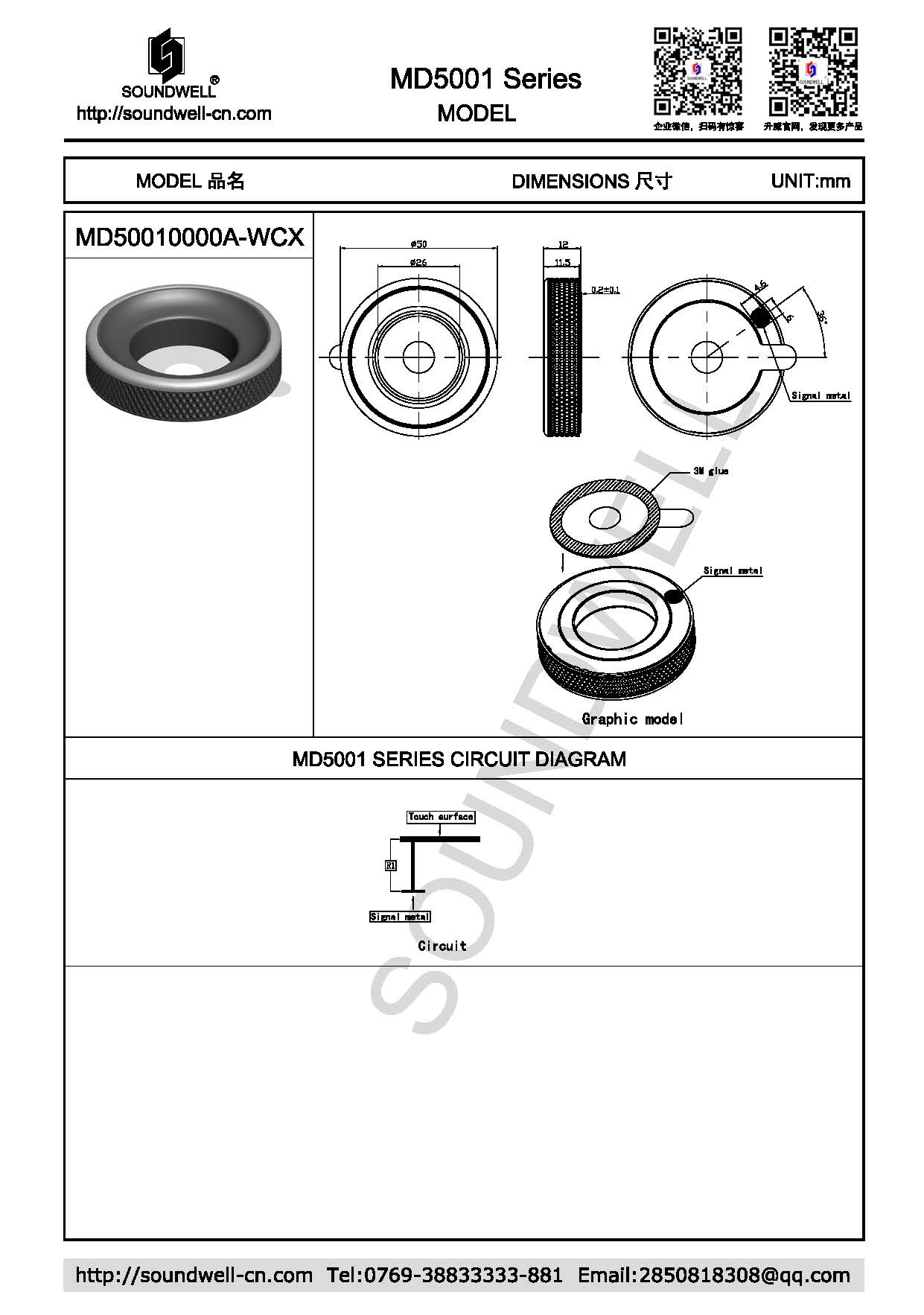

Module model： |
MD5001 series |
|
| Applications： |
Automotive displays and screens for various household appliances |
|
| Product Features: |
Long life with clear sense of click and beautiful appearance. |
|
| Main Specifications: |
Working temperature: -40℃~85℃; Mechanical rotation angle: 360°; Number of detent: 30; Rotational torque: 120±70gf.cm; Push-pull strength: ≥4Kg; Rotational life: 50,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 120±70 gf.cm
2. Number of detent: 30
3. Push-pull strength: ≥4Kg
4. Shaft Wobble (mm p-p): 0.3mm Max
TWO、ELECTRICAL CHARACTERISTIC
1. Contact Resistance: 200? Max
2. Insulation Resistance: 100M? 1 Minute at DC 250V
3. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
