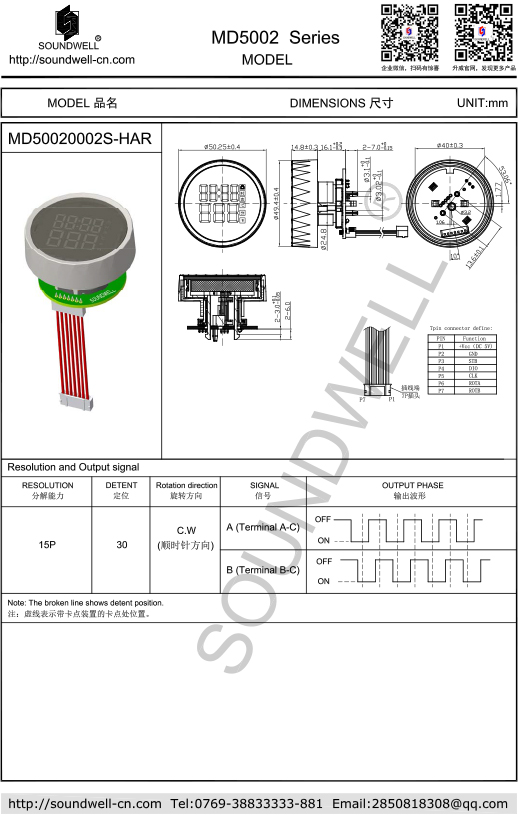

Module model： |
MD5002 series |
|
| Applications： |
Electronic devices related to household appliances such as ovens and microwave ovens; |
|
| Product Features: |
A mutli-functional knob module with digital tube display and rotational encoder; |
|
| Functions： |
Mainly used to adjust power, adjust time, and adjust temperature. |
|
| Main Specifications: |
Rated voltage: DC 5V; Maximum operating current: 100mA; Working temperature: -40℃~80℃; Mechanical rotation angle: 360°; Number of detent: 30 Pulses: 15 Rotational torque: 150±70gf.cm; Rotational life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 150±70gf.cm
2. Number of detent: 30
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution:15 pulses
2. Rated Power: DC 5V 100mA
3. Insulation Resistance: 100M? 1 Minute at DC 250V
4. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
