| Encoder model： | EC3508 series |
| Name： |
EC3508 Hollow Shaft Rotary Incremental Encoder |
| Main Specifications: | Rated power: DC 5V; Number of detent: 30; Pulses: 30; Rotational torque: 80-280 gf.cm. Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min; |
| Product Features： |
Smooth rotational feel and clear sense of click; |
| Applications： |
Microwave ovens, speakers and other household appliances, related electronic equipment |
EC3508 Product Specifications
ONE、MECHANICAL CHARACTERISTIC
1. Detent torque: 130-270gf.cm
2. Number of detent: 30 (Step angle: 12°±3°)
3. Shaft wobble: 0.3mm Max
4. Shaft play: 3° Max
TWO、ELECTRICAL CHARACTERISTIC 1. Resolution: 30 pulses/360°
2. Phase difference: ≥2ms
3. Power rating: DC 5V
4. Insulation resistance: 100M? 60s±5s at DC 2500V
5. Dielectric voltage: AC 300V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

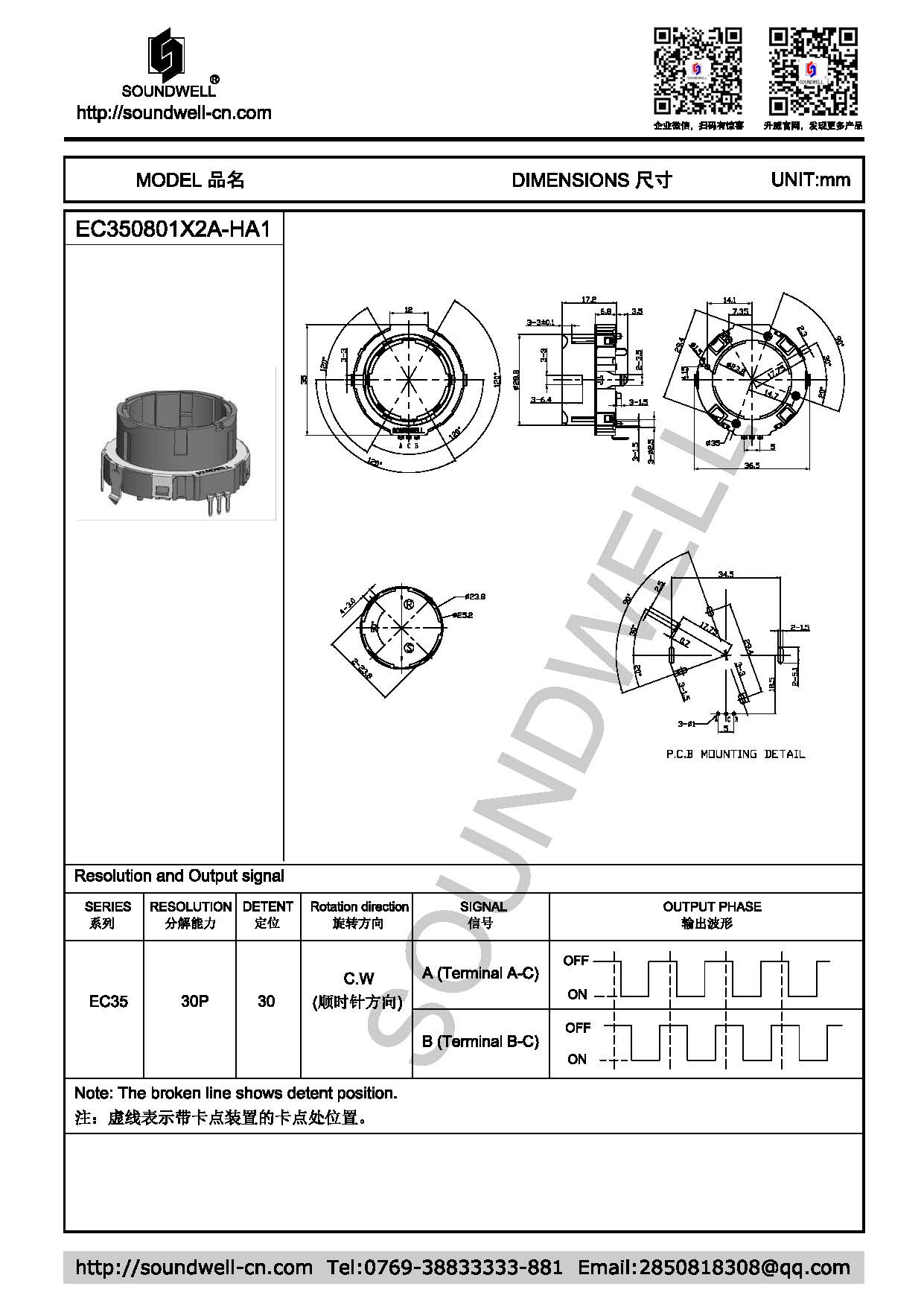

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
