| Encoder model： | EC430202 series |
| Name： |
EC430202 Hollow Shaft Rotary Encoder |
| Main Specifications: | Rated power: DC 5V; Number of detent: 20; Pulses: 20; Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min; |
| Product Features： |
Good operating feel and stable performance; Hollow encoder to enable flexible design in the center ring |
| Applications： |
The product is suitable for audio and other household appliances and related electronic equipment. |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 50-300gf.cm
2. Number of detent: 20 (Step angle: 18°±3°)
3.Shaft wobble: 0.3mm Max
4.Shaft play: 5° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 20 pulses/360°
2. Phase difference: ≥5ms
3. Power rating: DC 5V
4. Insulation resistance: 100M? 60s±5s at DC 250V
5. Dielectric voltage: AC 300V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min

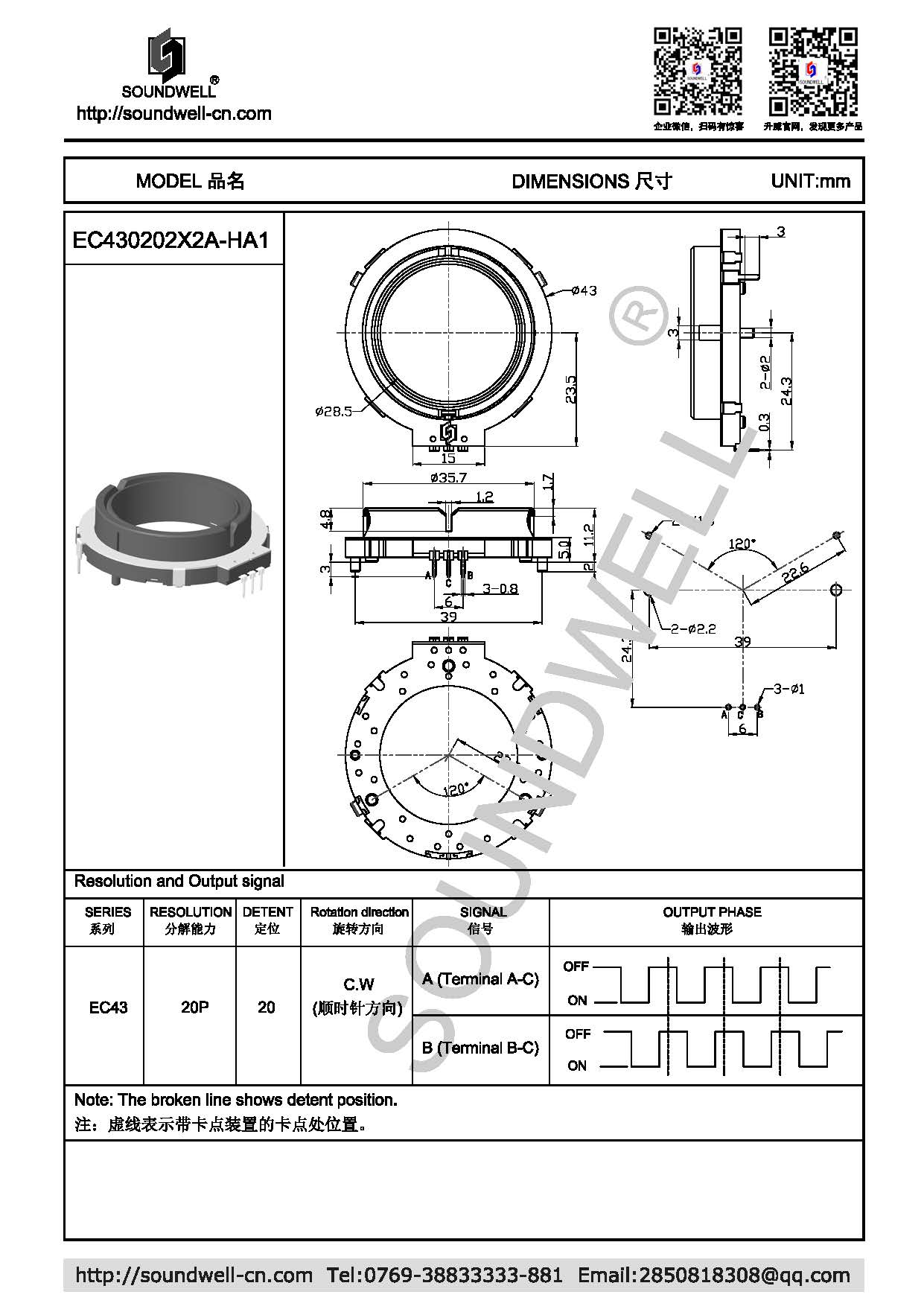

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
